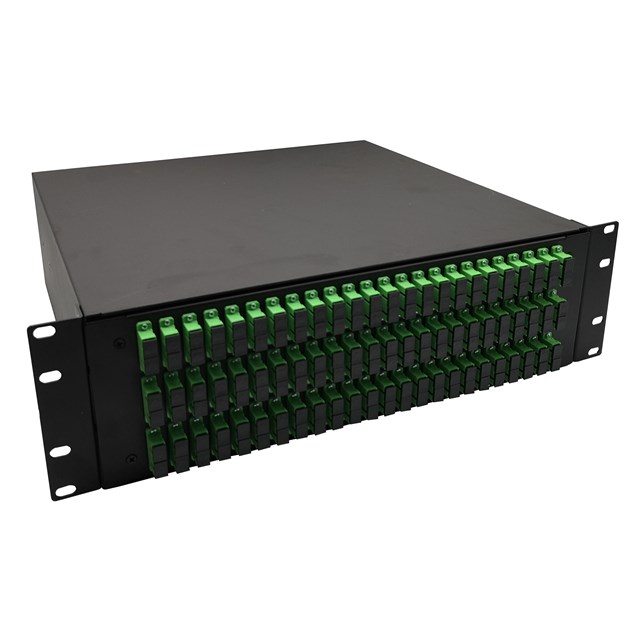

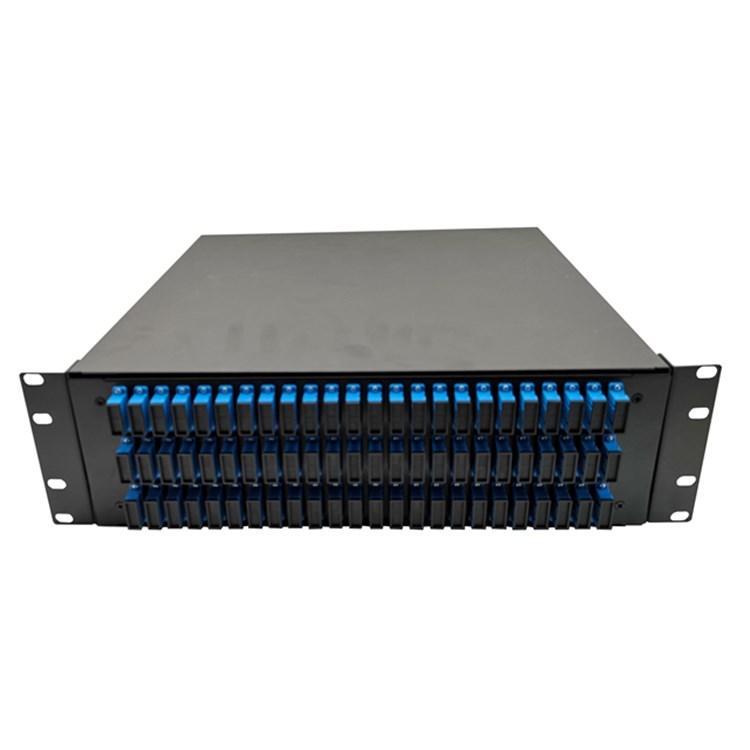

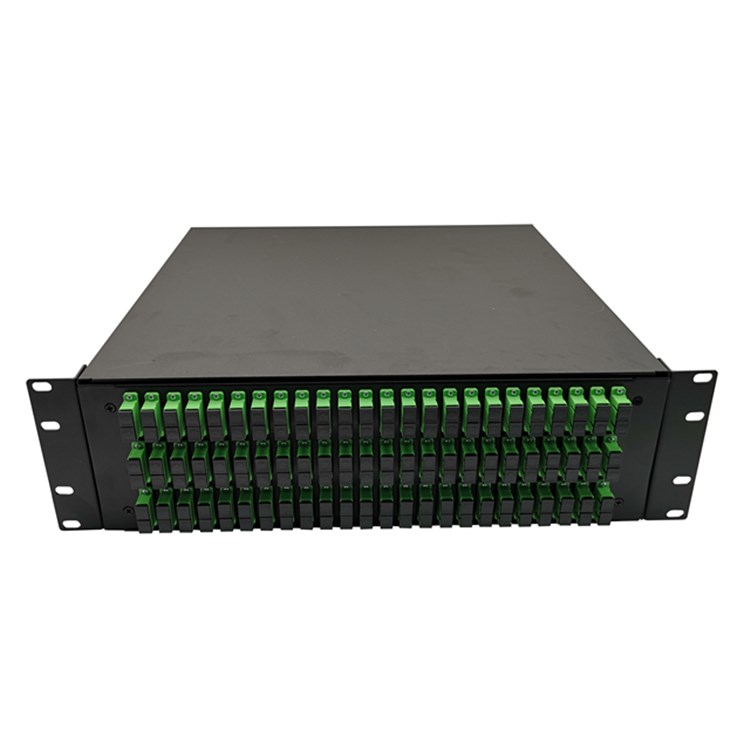

19in 3U 3RU Height ODF 144 core Rack Mount fibre optic distribution frame odf Fiber Optic Enclosure Manufacturer
Product details
Product name Optical Distribution Frame Connector Type Singlemode or multimode Module Type Drawer type Simplex or Duplex Max 288 cores Connector SC Simplex or LC Duplex Dimension 3U, 19in Material cold rolled steel sheet Size 485*310*120mm Color Black white grey Warranty Limited life Product Keywords fibre optic distribution frame,Fiber Optic Enclosure,Fiber Optic Enclosure 144C
Description:
Fiber patch panel series of optic distribution boxes ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Feature:
Standard size, light weight and reasonable structure

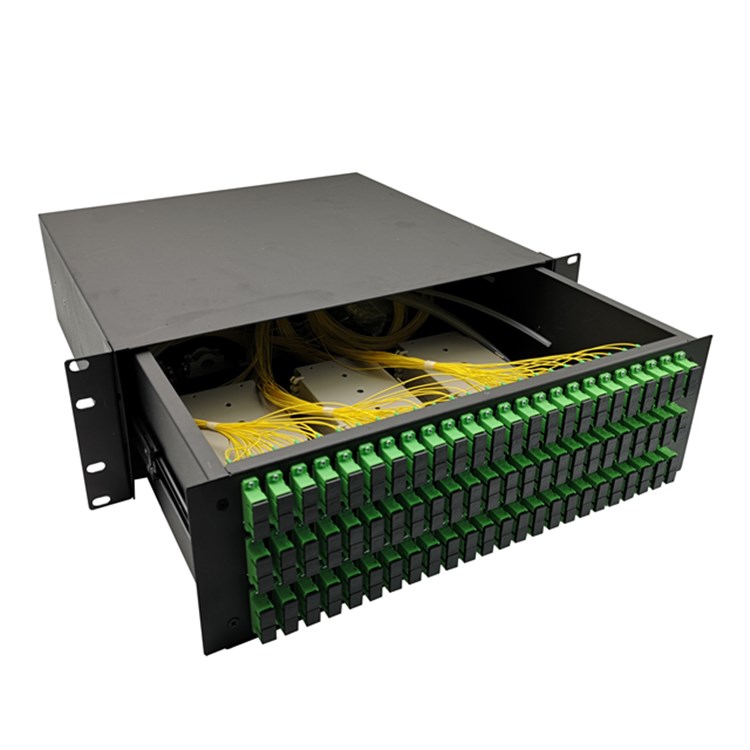

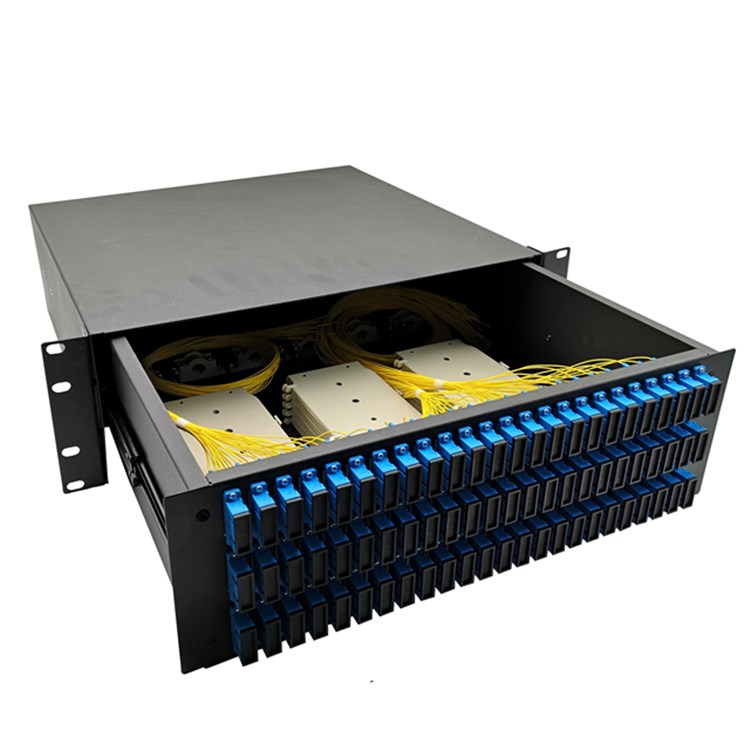

Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
4-8 pcs splice trays (each 24 fibers)
Max. capacity 288 fibers
4 fiber cable entry ports at rear side
White or black color
Product name | Optical Distribution Frame |
Connector Type | Singlemode or multimode |
Module Type | Drawer type |
Simplex or Duplex | Max 288 cores |
Connector | SC Simplex or LC Duplex |
Dimension | 3U, 19in |
Material | cold rolled steel sheet |
Size | 485*310*120mm |
Color | Black white grey |
Warranty | Limited life |
Product Keywords | fibre optic distribution frame,Fiber Optic Enclosure,Fiber Optic Enclosure 144C |
Description:
Fiber patch panel series of optic distribution boxes ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Feature:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
4-8 pcs splice trays (each 24 fibers)
Max. capacity 288 fibers
4 fiber cable entry ports at rear side
White or black color
Specification
Model TW-DR03-3U-144 Type 19inch Rock Mount Material Cold Rolled Steel Size W*D*H (mm) 485*310*120mm Max capacity (core) 288 Included accessories 4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws Product color Black Working temperature -40~+85°C Storage temperature -40~+85°C





Model | TW-DR03-3U-144 |
Type | 19inch Rock Mount |
Material | Cold Rolled Steel |
Size W*D*H (mm) | 485*310*120mm |
Max capacity (core) | 288 |
Included accessories | 4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws |
Product color | Black |
Working temperature | -40~+85°C |
Storage temperature | -40~+85°C |
