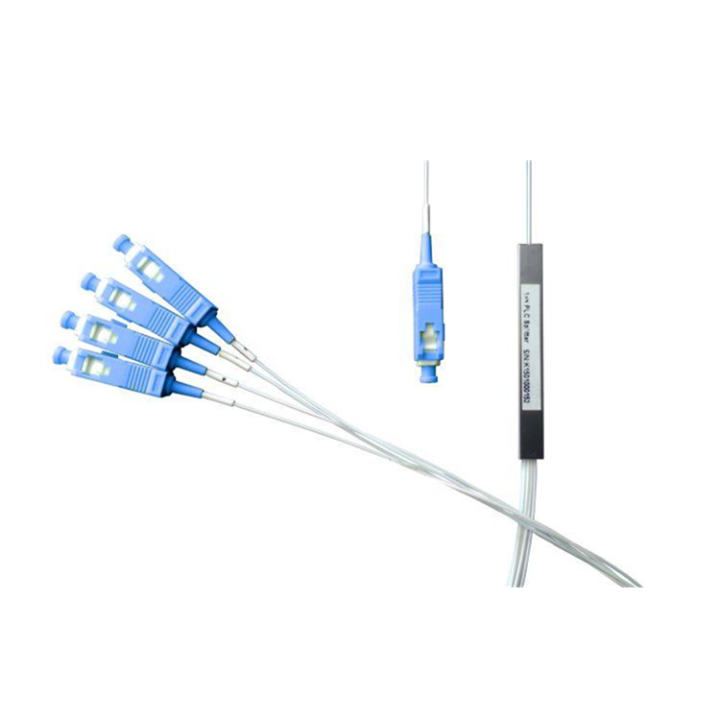

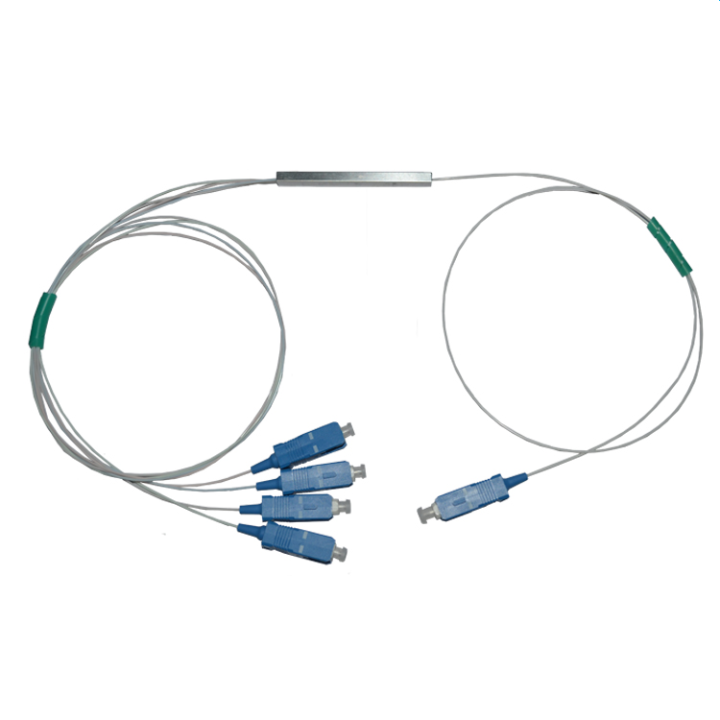

1x4 SC/UPC Connector 0.9mm Splitter optyczny PLC Steelbox

Description:

PLC (Planar Lightwave Circuit) Splitters are Single mode splitters with an even split ratio from one input fiber to multiple output fibers. The number of available splitting counts are: 1x2, 1x4, 1x8, 1x16, and 1x32.

We offer ABS box PLC Splitters with a wide range of styles and sizes to split or combine light with minimal loss. All splitters are manufactured using a very simple process that produces reliable, low-cost devices. Splitters can be fabricated in custom fiber lengths and with any type of connector.

Fiber optic splitters features high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



Applications

Fiber Optic Equipment and Systems

CATV Systems

Local Area Network, PON, and FTTH

Fiber Sensors





Specifications 1×N PLC Splitter

Parameters

1×2

1×4

1×8

1×16

1×32

1×64


Operating Wavelength(nm)

1260~1650

Fiber Type

G657A1 or customer specified

Insertion Loss (dB)

≤4.1

≤7.4

≤10.5

≤13.8

≤17.1

≤20.4


Uniformity(dB)

≤0.4

≤0.6

≤0.8

≤1.0

≤1.2

≤1.8


Polarization Dependent Loss(dB)

≤0.2

≤0.2

≤0.3

≤0.3

≤0.3

≤0.4


Directivity(dB)

APC≥55,UPC≥50

Fiber Length (m)

1.0(±0.1)or customized

Operating Temperature(℃)

-40~+85
