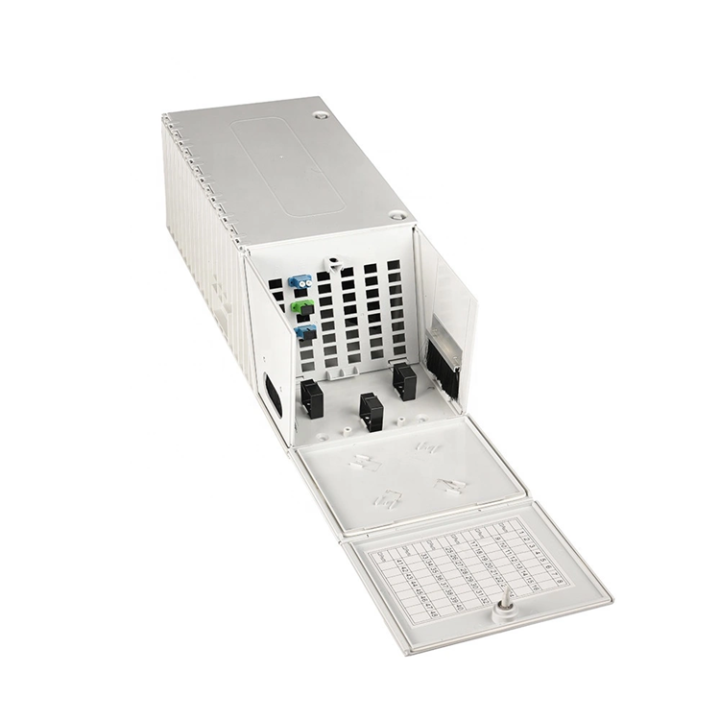

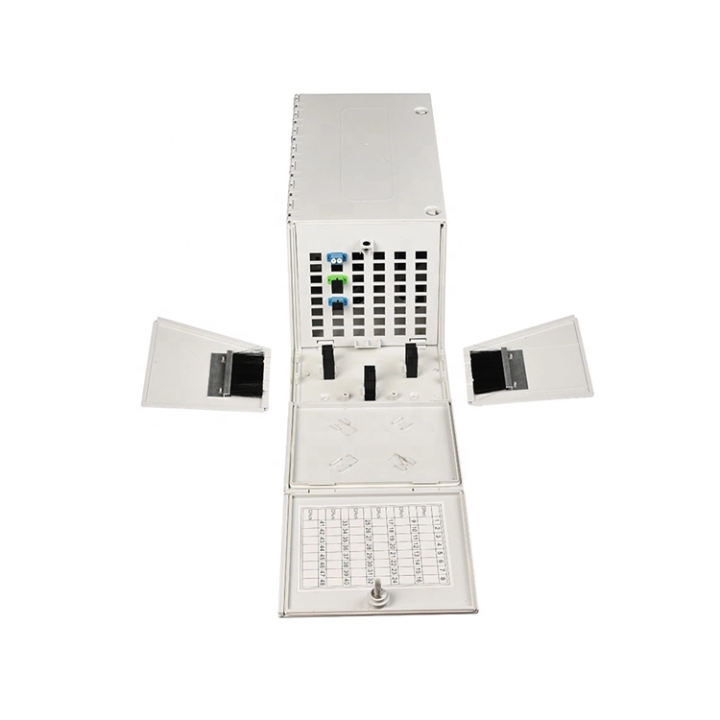

48 cores Fiber Optical Distribution Cabinet Box Manufacturer

Product details

Product name	Fiber Optical Distribution Cabinet Box
Connector Type	FC,LC, SC, ST
Size	450X180X150mm
Splice tray	Simplex 6 pcs
Material	ABS
Application	For Cable distribution
Color	White
Warranty	Limited life
Original of Place	Shenzhe of China
Splice Capacity	96 cores
Product Keywords	Fiber Optical Distribution Cabinet Box

Description:

Fiber Distribution Hub are designed to provide a high density wall-mountable solution for next generation fiber networks, it is used as terminal equipment of fiber optical cable for fiber patching, Splicing, Fiber splitting and management.

Characteristics:

Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system.

Possible scalability depending on the number of operators addressing the building.

Optical cable access left with lashing system.

Specification

Item	Wall Mount Multi-operator Fiber Distribution Cabinet
Size (mm):	450X180X150
Max Capacity:	96 cores (6X16 F) + 48 SC adapter
Splice tray	6 Pcs
No. of Splitters:	Max 3 pcs 1:16
Protection Grade:	IP30
Working temp:	-25°C ~ 65°C (5 to 95% Relative Humidity)
