  • Optical Fiber 1x32 SC/APC Insertion Card Type LGX Box PLC splitter

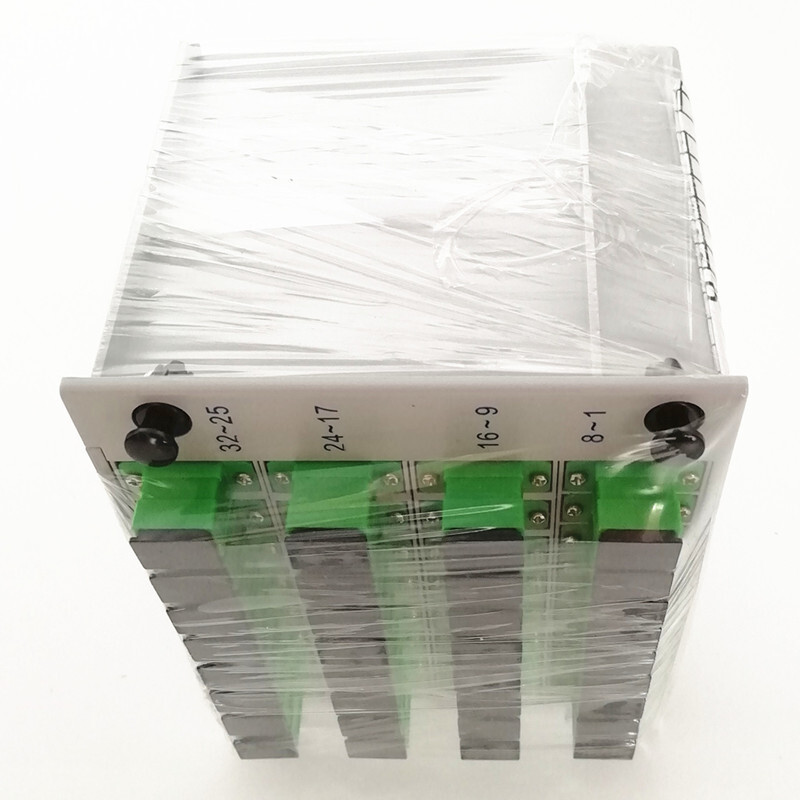

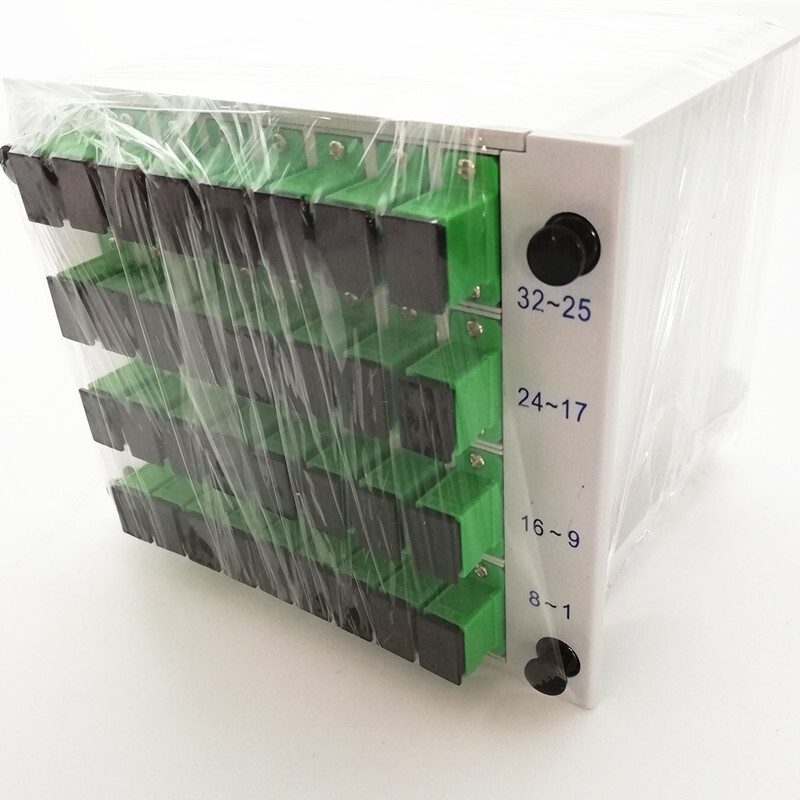

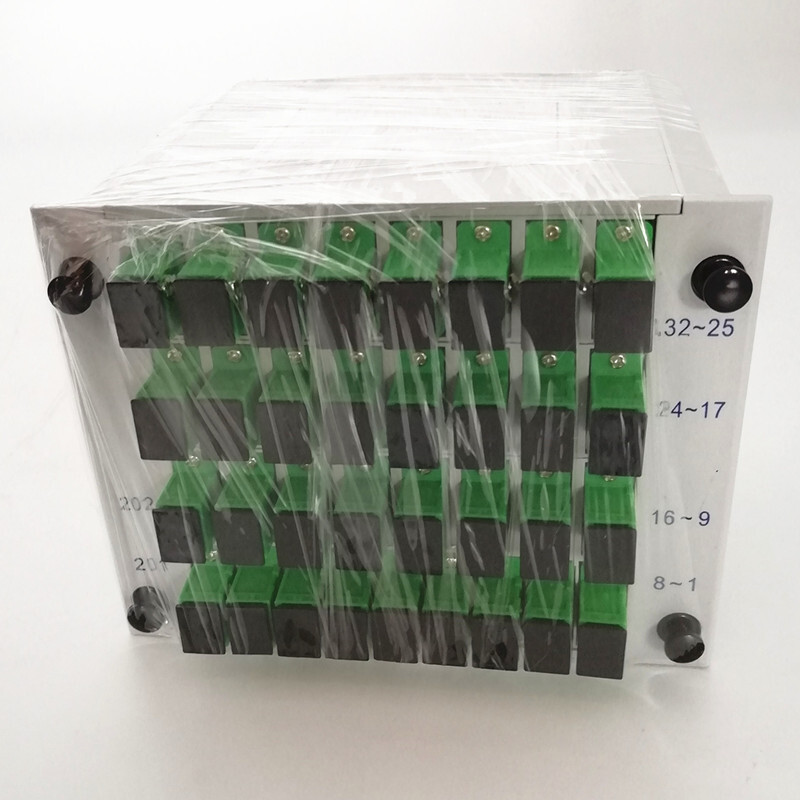

Optical Fiber 1x32 SC/APC Insertion Card Type LGX Box PLC splitter

0 stars, based on 0reviews
Price:
$20.00$19.50 / piece
Quantity: - + 10000items available
Contact Us

 1x32 LGX Box Cassette Card Inserting  PLC Splitter Module is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Optical Fiber 1x32 SC/UPC Insertion Card Type LGX Box PLC splitter Chinese wholesaler



Application:



  • Fiber to the point (FTTX)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)





 Specification:



Product Name     FTTH SC 1*16 LGX Box PLC Optical Splitter
Parameters 1x2 1x4 1x8 1x16 1x321x64
Operating Wavelength (nm)     1260~1650
Fiber Type     G657A
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.920.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.52.0
Return Loss 55/50 55/50 55/50 55/50 55/5055/50
Directivity 55 55 55 55 5555
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.50.5

Temperature Stability

(dB)

 0.4 0.4 0.4 0.5 0.50.5
 Operating Temperature (℃)     -40~85℃









Features



  • Good channel-to-channel uniformity
  • High reliability and small size
  • Low Insertion loss and Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • High Reliability and Stability
  • Standard LGX Metal/Plastic Box
  • Protective Package
  • Suitable for Outdoor Use
