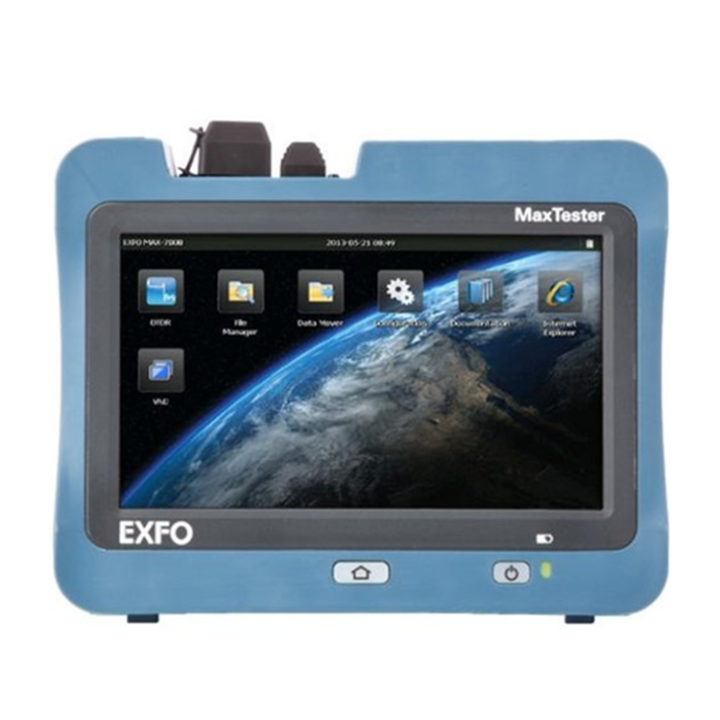

EXFO MAX730CSM1 Dedicated Handheld OTDR 1310/1550nm 39/28dB

Description:

The MaxTester 730C PON/METRO OTDR is optimized to test through optical splitters up to 1x128, ensuring complete end-to-end FTTH characterization. The 1625-nm or 1650-nm, out-of-band, live testing port enables the efficient troubleshooting of active networks without affecting the signal of other clients. Plus, the high dynamic range makes it suitable for metro point-to-point testing.

KEY FEATURES

• Handy, lightweight, powerful, tablet-inspired design

• 7-inch, outdoor-enhanced touchscreen–the biggest in the

• handheld industry

• 12-hour autonomy

• Dead zones: EDZ 0.5 m, ADZ 2.5 m

• Dynamic range: 39/38/39 dB

• Rugged design built for outside plant

• iOLM-ready: intelligent and dynamic application that turns

• complex OTDR trace analysis into a one-touch task

Applications:

• Access network construction and troubleshooting

• FTTx/PON testing though splitters (up to 1x32)(single mode is an exception);

• Central-office (CO) link certification;

• Data-center tier-2 troubleshooting;

• Private/enterprise networks;

• LAN/WAN characterization;

• Fronthaul/backhaul (FTTA, FTTT, remote radio heads, DAS and small cells)
