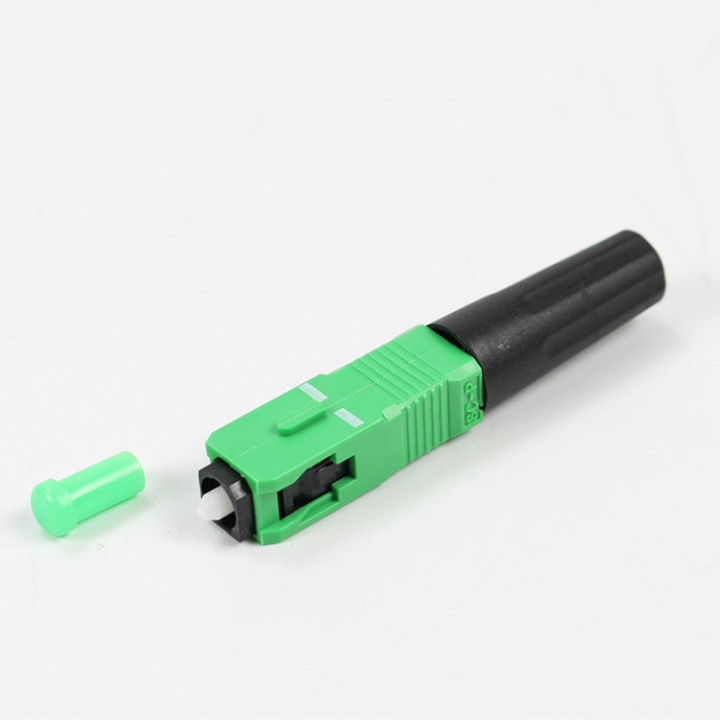

FTTH 55mm single mode fast connector fiber optic sc For 2.0mm 3.0mm drop cable
Product details
Product Name Field Assembly Optical Connector Color Blue Green Customized Connector Cable Diameter 0.9mm 2.0mm 3.0mm Type Single Mode, Multimode Connector Type SC/APC Insertion Loss ≤ 0.2dB Return Loss ≥ 55dB Weight 3g Temperature -40℃to 75℃ Application FTTH FTTX Network Product Keywords fast connector fiber optic sc
Description:
Fiber Optic Fast Connector is used for field-installable optical fiber connector. It can provide Open flow and Precast type of products,whose optical and mechanical specification meets the standard optical fiber connector.
Features:
Precision mechanical alignment insures low insertion loss.
Low-volatile reliable matching liquid preserved by side cover
Unique bell-shaped boot maintains the mini fiber bend radius
Pre-installed, on-site assembly without end face grinding and
consideration
Easy and fast installation, 30 seconds to learn install, 90 seconds
to operate in the field
.
Specifications:
Parameter SM(9/125), MM(50/125, 62.5/125) Fiber cable type 3.0x2.1mm flat, 2.0mm, 3.0mm round Drop Cable Insertion Loss ≤ 0.3dB(pc), ≤ 0.2dB(APC) Return Loss ≥ 50dB(PC), ≥ 55dB(APC) Fastening Strength of Bare Fiber ≥ 5N Tighten Strength of Coating ≥ 10N Tensile Strength Test ≥ 30N Tensile strength (20 N) IL≤ 0.2dB Operation Time ≤ 90 seconds Success Rate ≥ 98% Humidity (+25+65 93 R.H.100 hours) ≤ 0.2dB Mechanical Durability (500 times) IL ≤ 0.3dB Drop Test (4meters concrete floor, once each direction, three times in total) IL ≤ 0.3dB Reused Times Above 5 times Operating Temperature -40° C~70° C Storage Temperature -40° C ~ +85° C(Circular Temperature: sustain 100 hours≤0.2dB)




Product Name | Field Assembly Optical Connector |
Color | Blue Green Customized |
Connector Cable Diameter | 0.9mm 2.0mm 3.0mm |
Type | Single Mode, Multimode |
Connector Type | SC/APC |
Insertion Loss | ≤ 0.2dB |
Return Loss | ≥ 55dB |
Weight | 3g |
Temperature | -40℃to 75℃ |
Application | FTTH FTTX Network |
Product Keywords | fast connector fiber optic sc |
Description:
Fiber Optic Fast Connector is used for field-installable optical fiber connector. It can provide Open flow and Precast type of products,whose optical and mechanical specification meets the standard optical fiber connector.
Features:
Precision mechanical alignment insures low insertion loss.
Low-volatile reliable matching liquid preserved by side cover
Unique bell-shaped boot maintains the mini fiber bend radius
Pre-installed, on-site assembly without end face grinding and
consideration
Easy and fast installation, 30 seconds to learn install, 90 seconds
to operate in the field
.
Specifications:
Parameter | SM(9/125), MM(50/125, 62.5/125) |
Fiber cable type | 3.0x2.1mm flat, 2.0mm, 3.0mm round Drop Cable |
Insertion Loss | ≤ 0.3dB(pc), ≤ 0.2dB(APC) |
Return Loss | ≥ 50dB(PC), ≥ 55dB(APC) |
Fastening Strength of Bare Fiber | ≥ 5N |
Tighten Strength of Coating | ≥ 10N |
Tensile Strength Test | ≥ 30N |
Tensile strength (20 N) | IL≤ 0.2dB |
Operation Time | ≤ 90 seconds |
Success Rate | ≥ 98% |
Humidity (+25+65 93 R.H.100 hours) | ≤ 0.2dB |
Mechanical Durability (500 times) | IL ≤ 0.3dB |
Drop Test (4meters concrete floor, once each direction, three times in total) | IL ≤ 0.3dB |
Reused Times | Above 5 times |
Operating Temperature | -40° C~70° C |
Storage Temperature | -40° C ~ +85° C(Circular Temperature: sustain 100 hours≤0.2dB) |
