FTTH embedded SC Cold fiber fast connector At Wholesale Price
Product details
Product Name | Field Assembly Optical Connector |
Color | Blue/Green |
Cable Applicable | 2.0 x 3.0mm or 2.0 x 1.6mm Flat Cable |
Ferrule End-face | APC or UPC for option |
Insertion Loss | ≤0.3 |
Return Loss | ≥50 |
Operating Temperature: | - 40°C to + 85°C |
Warranty | Limited life |
Reusable Time | ≥10 |
Product Keywords | fiber fast connector |
Product Description:

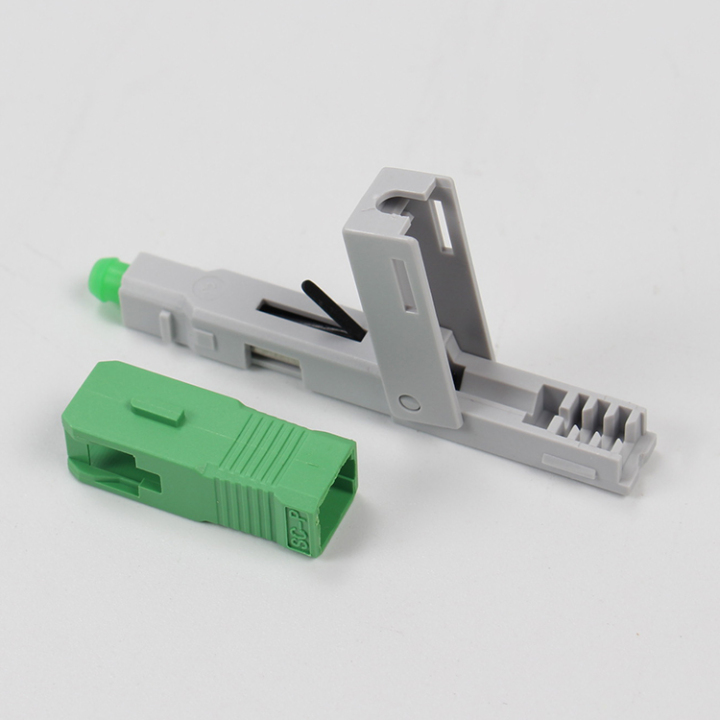

Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.
Features / Benefits:
Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
Double V-slot structure design, fiber optic docking is stable and reliable;
The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.
All fiber interconnection;
Telecom Distribution and Local Area Networks;
FTTH and FTTx;
Passive optical networks [ATM, WDM, Ethernet];
Broadband, Cable TV(CATV).
Specification:
Item | Unit | UPC | APC |
Insertion Loss | dB | ≤0.25 | ≤0.3 |
Return Loss | dB | ≥50 | ≥55 |
Tensile strength | N/2min | >30 | |
Operating Temperature | ℃ | -40~+85 | |
Reusable | Time | ≥10 | |

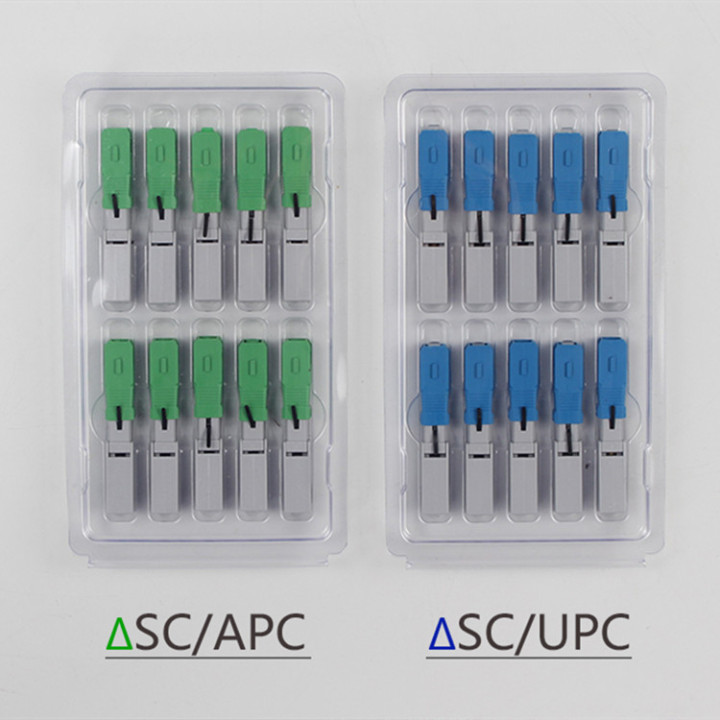

Housing | Color | Blue | Green |
Cable Applicable | mm | 2.0 x 3.0mm or 2.0 x 1.6mm Flat Cable |
