Product details
Product IP65 PC and ABS 24 port fiber optic access junction box Size(mm) 335x210x95 Scope of application 3.0x2.0mm drop cable or indoor cable Connecting Adapter SC,LC duplex Fiber cladding diameter 125um(G652&G657) Fiber type SM&MM Mount Type Wall Mount Insertion loss <0.2dB Operating Temperature: -40~+75℃ Customized Customized Logo Product Keywords fiber optic ftth box
IP65 PC and ABS 24 port fiber optic access junction box
TW-FATB-0424A fiber access termination box is able tohold up to 16 subscribers and 1 20 splicing point.It is usedas a termination point for the feeder cable to connectwith drop cable in FTTx network system.It integrates fiber splicing, splitting, distrib ution,storage and cable connection in one solid protection box.
Features
Water-proof design with IP-65 Protection level.

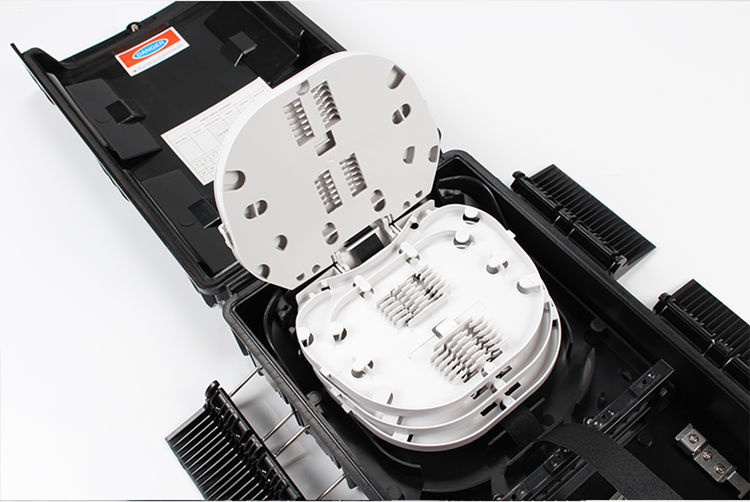

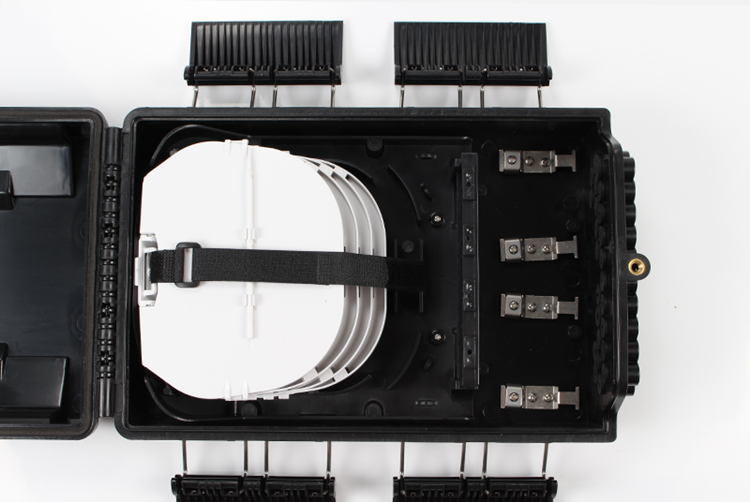

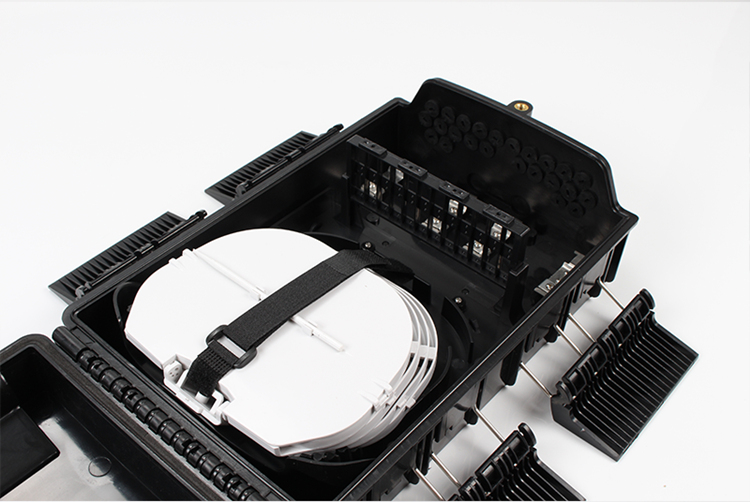

Integrated with flap-up splice trays.
Maximum 120F splice capacity, stainless anti-rust bolts and nuts.
Easy for maintenance and expansion, neat ca bling.
Fiber bend radius control more than 40mm.
180 degree access with buckled lock structure.
3 pcs of 1*8 PLC splitter can be installed.
24 pcs of pre-installed reinforced water-proof adapter for SC.

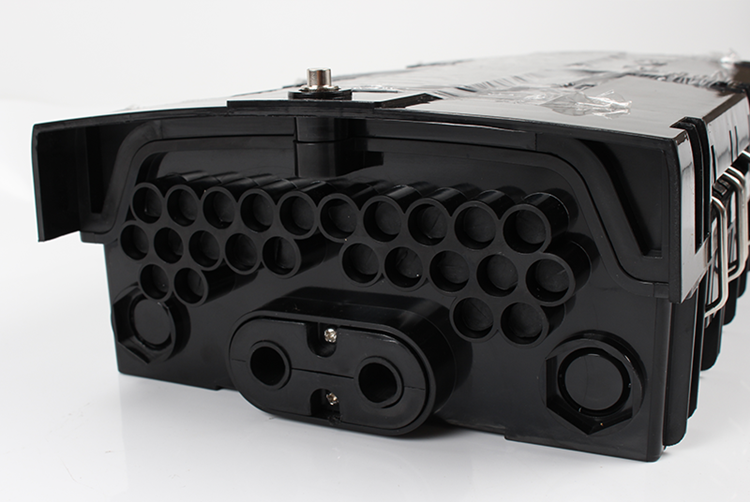

1 mid—span cable entrance(10-16.Smm) for uncut cable.
Application
Wall-mounted Installation
Pole-mounted Installation
Aerial-hanging Installation
Suitable fo r Huawei Pre-connectorized drop cable with reinforced connector
Configuration
Material
Size Max Capacity Reinforced
Adaptor
Weight PC+ABS L*W*H(mm)
335*210*95
Splice 120 Fibers
(5trays,24 fiber/tray)
PLC Splitter
3 pcs of 1*8
24 pcs SC/UPC
or SC/APC
1.85kg
