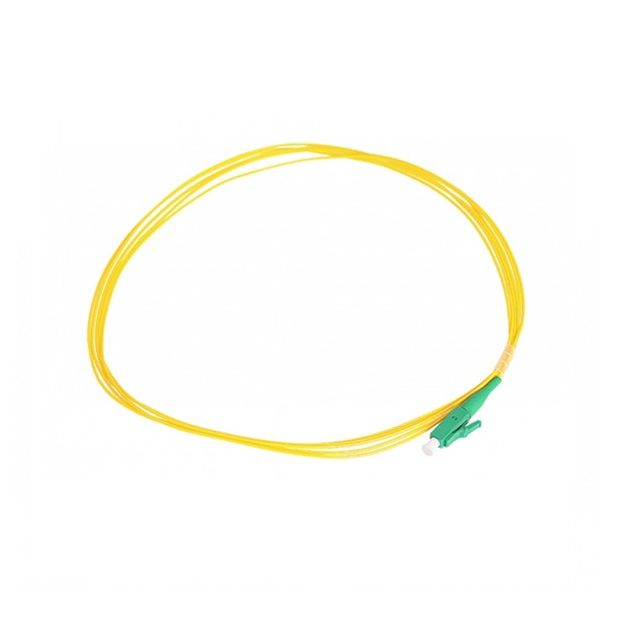

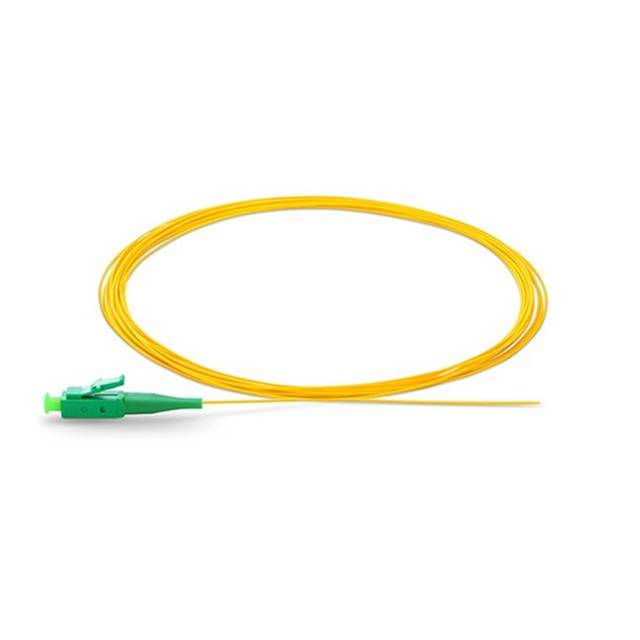

Yellow Singlemode Monomode single fiber 0.9mm 900um LC/APC Pigtail Supplier

stars, based on 0reviews

Length

Description
Item specifics

Yellow Singlemode Monomode single fiber 0.9mm 900um LC/APC Pigtail Supplier

Product details

Product	Fiber Optic Pigtail SM LC
Pre-Terminated Connector	LC
Polished	UPC or APC
Fiber Count	Single fiber
Fiber Mode	SM or MM
Jacket Color	OS2, OM1, OM2, OM3 or OM4
Breakout OD	0.9mm
Insertion Loss	< 0.2 DB
Return Loss	>50db
Jacket Materials	PVC LSZH
Product Keywords	Monomode 9/125 LC Pigtail

Description:

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Specification:

3m yellow Singlemode Monomode single fiber 0.9mm 900um ST Pigtail Supplier

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1 set/bag

Featurers:

– Low insertion loss and high return loss;
– Good repeatability & interchangeability;
– PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
– Suitable for high-speed, high-capacity optical fiber transmission system;
– Provide single mode/ multimode patch cord and pigtails;
– Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
– Length/Type: according to customers’ demands.

Application:

Access Network

Telecom/CATV Systems

FTTx
