Product details
| Product Name | PLC Splitter |
| Fiber Type | LC,FC,SC,ST |
| Type | Mini PLC |
| Ferrule Polish End-face | PC,UPC,APC |
| Application | gepon,ftth ,fttx |
| Insertion Loss | 4-22dB |
| Fiber Length | 1m ,1.5m, 2m or customized |
| Sleeve Diameter | 2.0mm,3.0mm,0.9mm |
| Package | bare, module, rack mount,ABS case |
| Wavelength | 1310/1490/1550nm |
| Product Keywords | PLC Splitter optical Fiber FTTH Solution mini plc |
Products description:

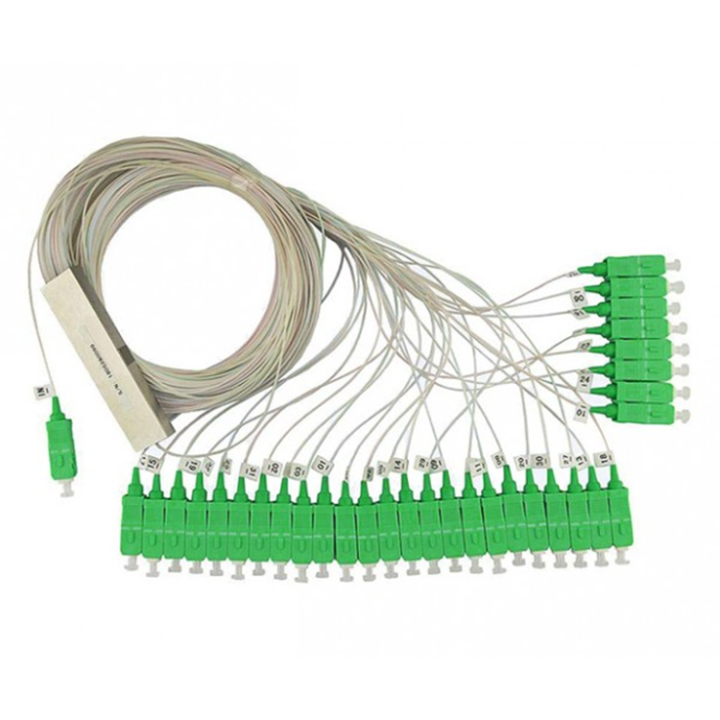

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
It's mainly used for various connection and distribution boxes or network cabinets.
Features:
High Quality PLC design features a protective metal casing around the fibers
PLC splitting mechanism divides input signal into equal parts across all output fibers
900µm loose tube fiber for easy stripping, splicing, or terminating
Also available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Application:
Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
Features:
The blockless splitter features small size, which is an intermediate choice between volume miniaturization and reliable fiber protection.
It is suitable for installation in your system design and manufacturing. Many of our OEM customers in the FTTH, FTTX, PON, GOPN get the blockless splitters together.
Standard configurations include 1×4, 1×8, 1×16, 1×32 and 1×64 configurations, as well as custom 2xN configurations.
We offer them as plain devices with or without connectors but as well packaged according to your specific needs in 1RU 19" chassis, standard LGX cassettes, splice pigtailed ABS modules, etc.
