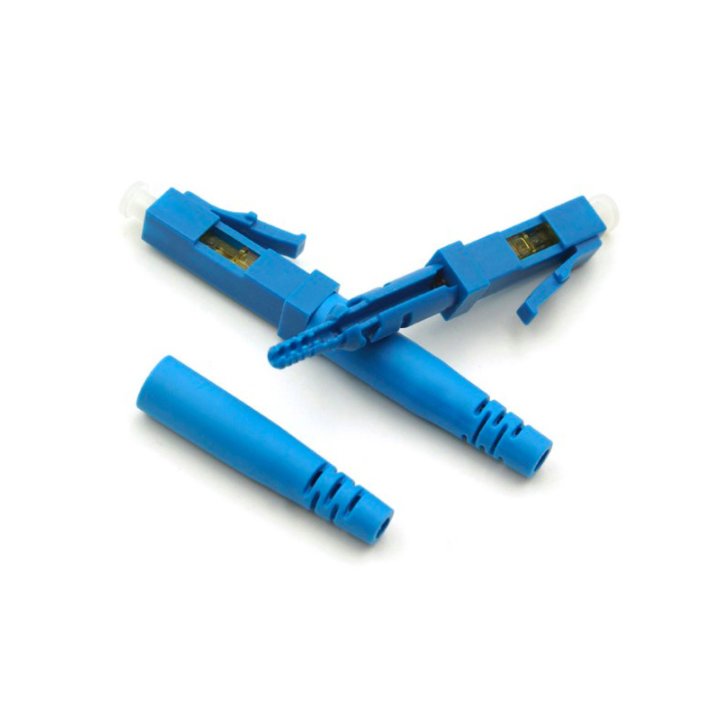

Blue Color FTTH LC Pre-Polished Fast Connector in China
Product details
Product Name LC Fast connector Color Blue Green Customized Connector Cable Diameter 0.9mm 2.0mm 3.0mm Type Single Mode, Multimode Connector Type LC/UPC Insertion Loss < 0.3dB Return Loss < -45dB Weight 3g Temperature -40℃to 75℃ Application FTTH FTTX Network Product Keywords LC Pre-Polished Fast Connector
The LC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
Features:
- No epoxy and polishing required
- No expensive tools required
- Quick and easy fiber termination
- Precision mechanical alignment insures low insertion loss
- Superior optical performance
- Streamlined component design, convenient operation
- Pre-installed, on-site assembly without end face grinding and consideration
- Uses proven, molded v-groove technologies
- Allow optical continuity to be verified by use of visual fault locator (VFL)
Applications:
Fast Ethernet,Data Communication LAN and WAN
High speed Enterprise servers
Multiplexers,switches and routers
Optical Access and ATM Networks Equipment
Optical Transport and Telecommunications,FTTH,FTTD,FTTX
Switching Equipment
| Product Name | LC Fast connector |
| Color | Blue Green Customized |
| Connector Cable Diameter | 0.9mm 2.0mm 3.0mm |
| Type | Single Mode, Multimode |
| Connector Type | LC/UPC |
| Insertion Loss | < 0.3dB |
| Return Loss | < -45dB |
| Weight | 3g |
| Temperature | -40℃to 75℃ |
| Application | FTTH FTTX Network |
| Product Keywords | LC Pre-Polished Fast Connector |
The LC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
Features:
- No epoxy and polishing required
- No expensive tools required
- Quick and easy fiber termination
- Precision mechanical alignment insures low insertion loss
- Superior optical performance
- Streamlined component design, convenient operation
- Pre-installed, on-site assembly without end face grinding and consideration
- Uses proven, molded v-groove technologies
- Allow optical continuity to be verified by use of visual fault locator (VFL)
Applications:
Fast Ethernet,Data Communication LAN and WAN
High speed Enterprise servers
Multiplexers,switches and routers
Optical Access and ATM Networks Equipment
Optical Transport and Telecommunications,FTTH,FTTD,FTTX
Switching Equipment
