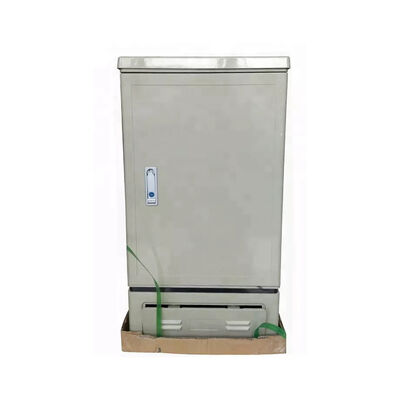

Outdoor Waterproof Optical Distribution Fiber Optic Cabinet ODC 144 Core Floor Type
1. Specification
| Parameters | Specification |
| Model | TW-CBSMC-144B |
| Max. No. of Cores | 144F SC, Or 288F LC |
| Splitter Type | cassette type |
| Max. No. of Splitters | 14 |
| Splice Tray Type | 12 cores/tray or 24 cores |
| Max. No. of Splice Tray | 24 |
| Cabinet Material | SMC |
| Adapter Panel | FC square, SC, DLC (SC type) |
| Insulation Resistance (MΩ) | 1000 @500V (DC) |
| Withstanding Voltage (V/min) | 3000 (DC), no breakdown, no flashover |
| Installation Type | Ground |
| Protection Rating | IP65 |
| Operating Temperature (°C) | -40~ +60 |
| Dimensions (mm) | 1035(H) x 555(W) × 310(D) |
| Weight (kg) | 45 |
Features:
Applications:

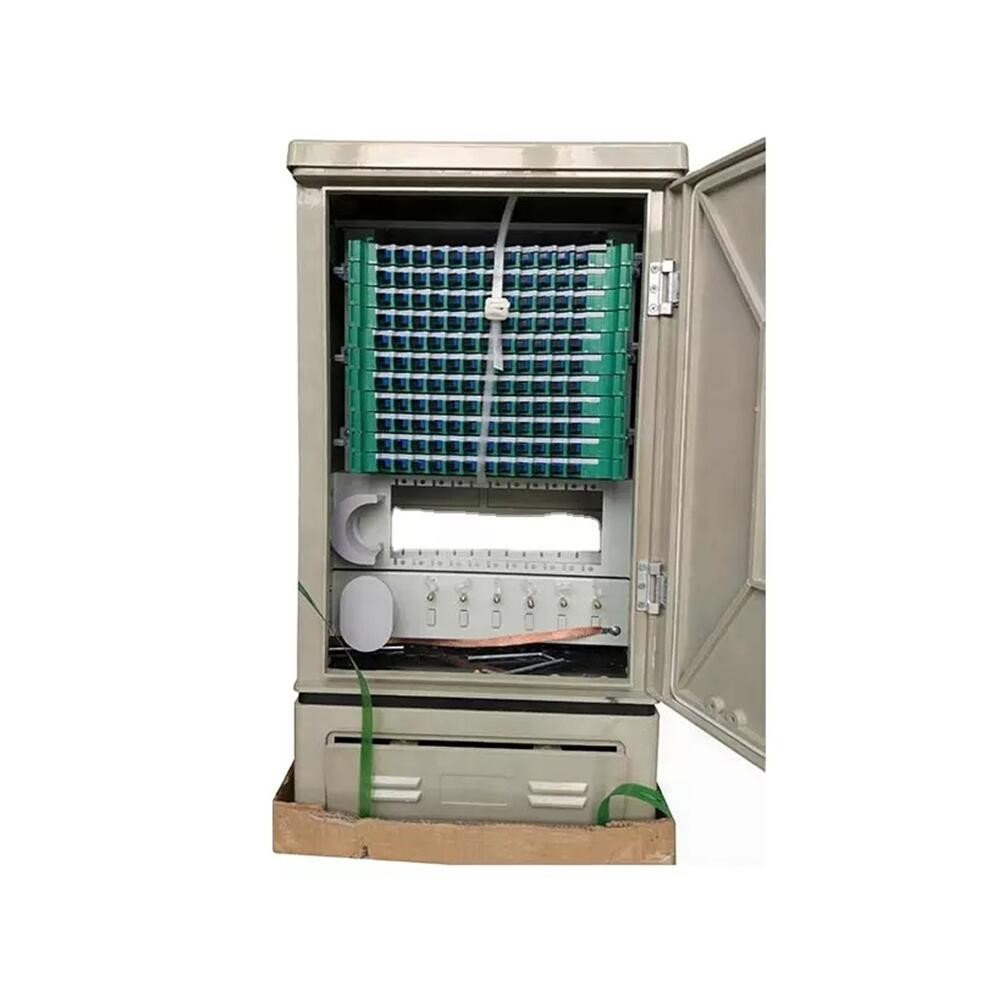

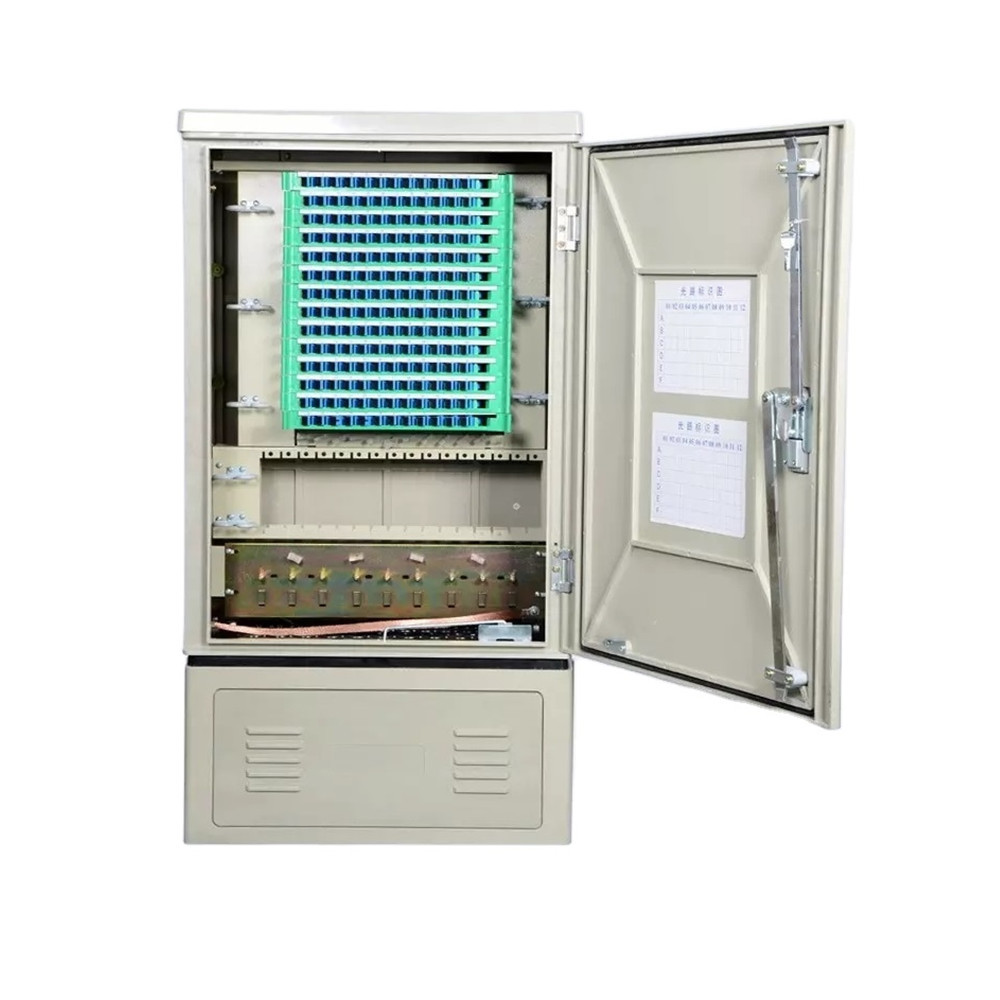

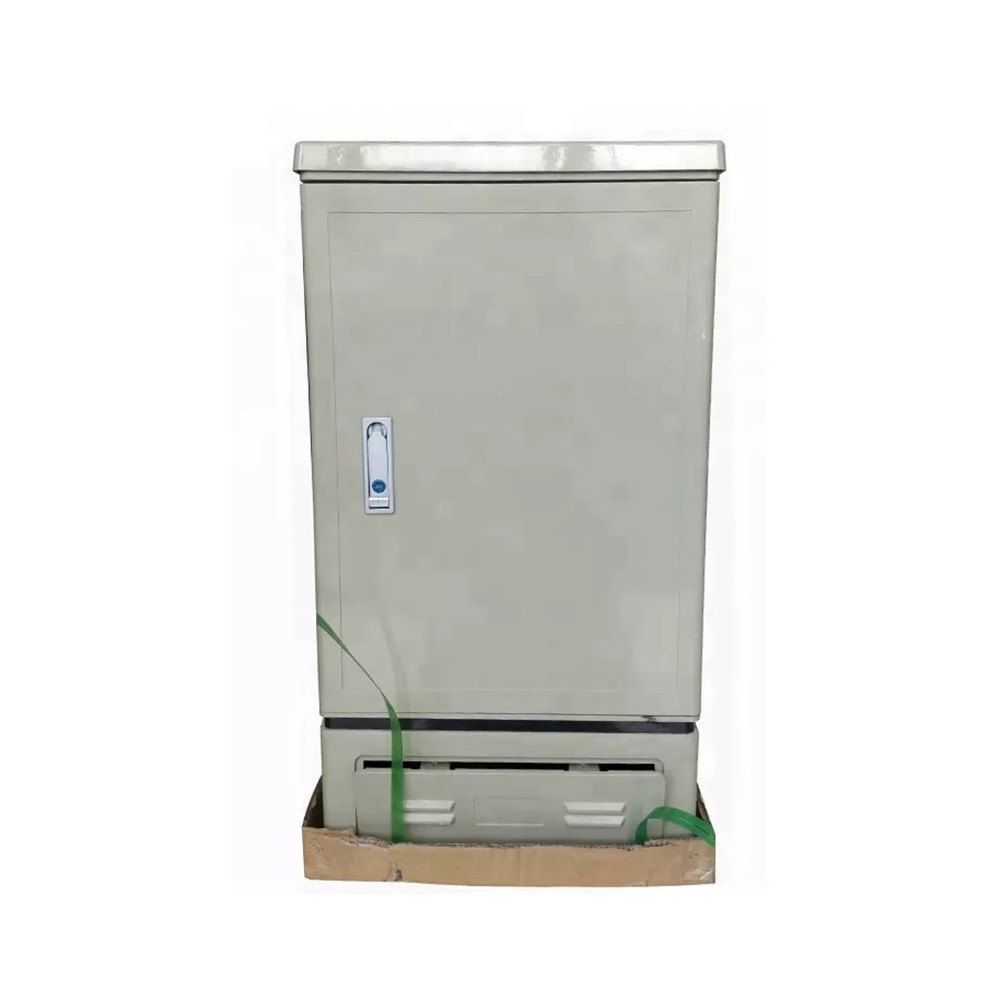

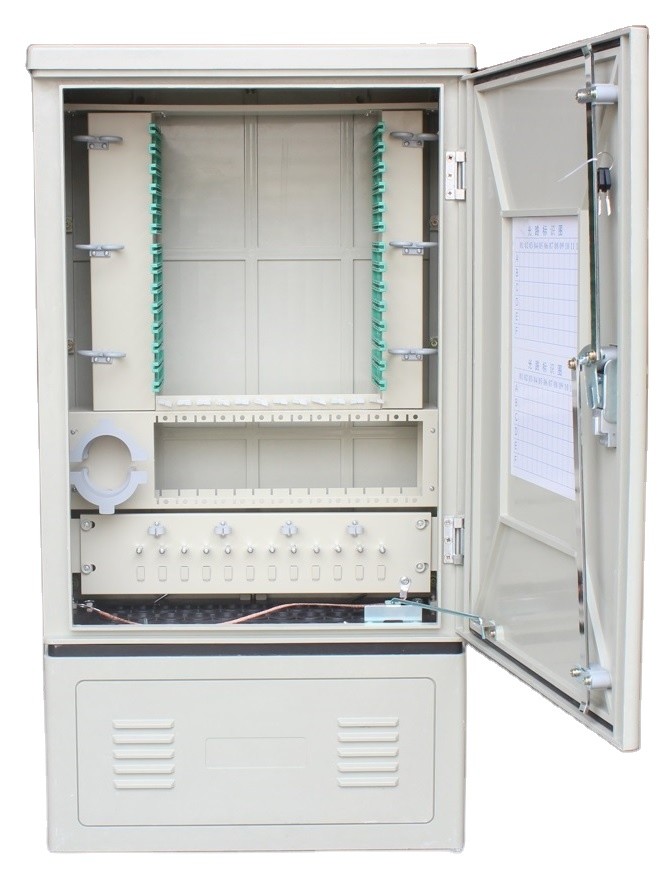

More photos for reference:
