Description
FastConnect Drop Cable is a pre-terminated fiber optic line used to connect outdoor terminals directly to homes or businesses . It features a rugged, waterproof IP68-rated connector that plugs in quickly without special tools. This plug-and-play design drastically speeds up installation and eliminates the need for field splicing.
2.0*5.0mm Cable
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
waterproof fiber equipment SC port Remote wireless base station
FTTH wiring project
l Features:
Cost effective solution for in house termination
Low insertion loss and added loss
IP68 water, dust proof and corrosion resistant
The material in the jumper cable are all-weather and UV-resistant
l Performance:
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Protection Level | IP67 |
| Tensile Data | Tensile between junction and fiber cable≥100N |

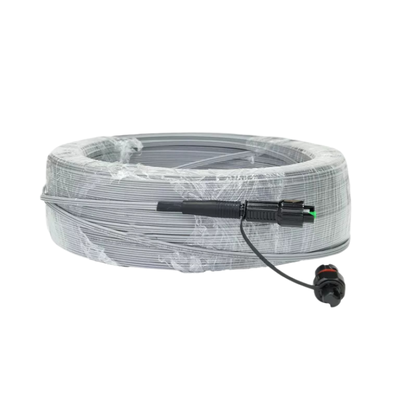

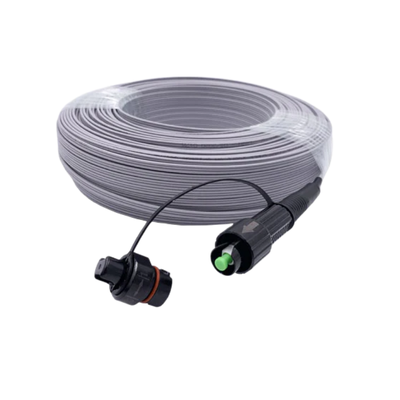

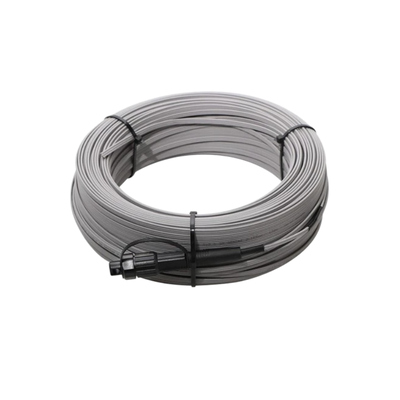

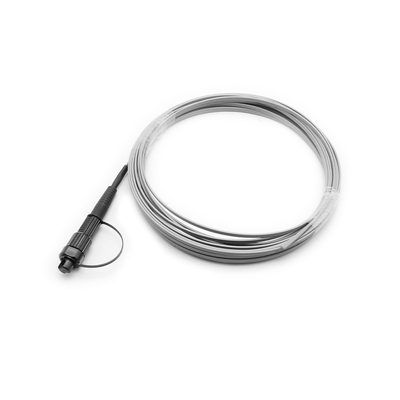

l Photos:
