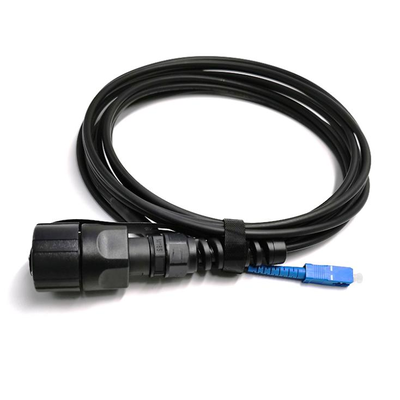

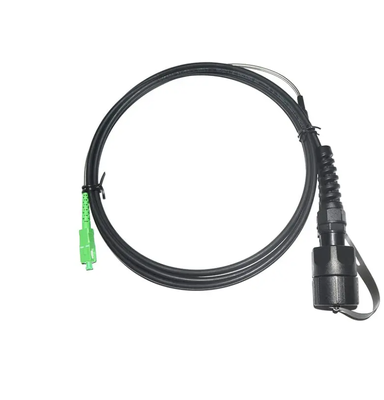

Ip68 FTTA ODVA SC to SC UPC APC 5.0mm Outdoor Armored Waterproof Fiber Jumper Patch cord
l Description:
This outdoor waterproof connector attaches to adapter on panel of RRH. The common LC
connector pair inside allows easier testing and cleaning. There are two types of connector
plugs available: threaded and easy-connect bayonet.Harsh environments where
chemicals,corrosive gases and liquids are commonplace.Telecommunication/CATV
Systems.FTTX and Special environmental.Mobile routers and internet hardware.
l Features:
·Proven design provides a hardened connector for outside plant deployment
·Single-fiber,single-model hardened connector SC/APC drop cable assemblies
·For Ultra PC, or Angle PC Applications
·Cable and Fiber from major cable manufacturers: Draka, Corning, Prysmian and YOFC
·Easy connection to hardened adapters on terminals or closures
·Custom Lengths
l Performance:
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Protection Level | IP67 |
| Tensile Data |
Tensile between junction and fiber cable≥100N
|
l Photos:
