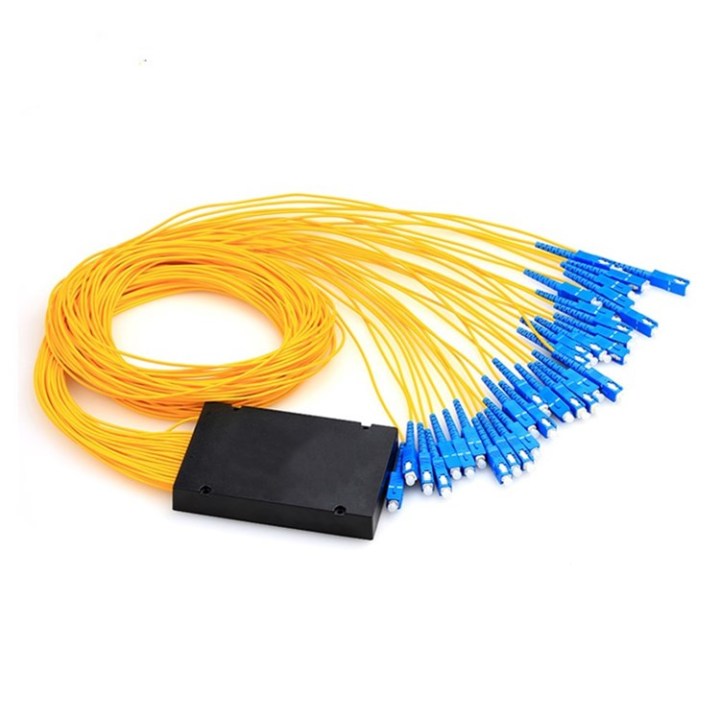

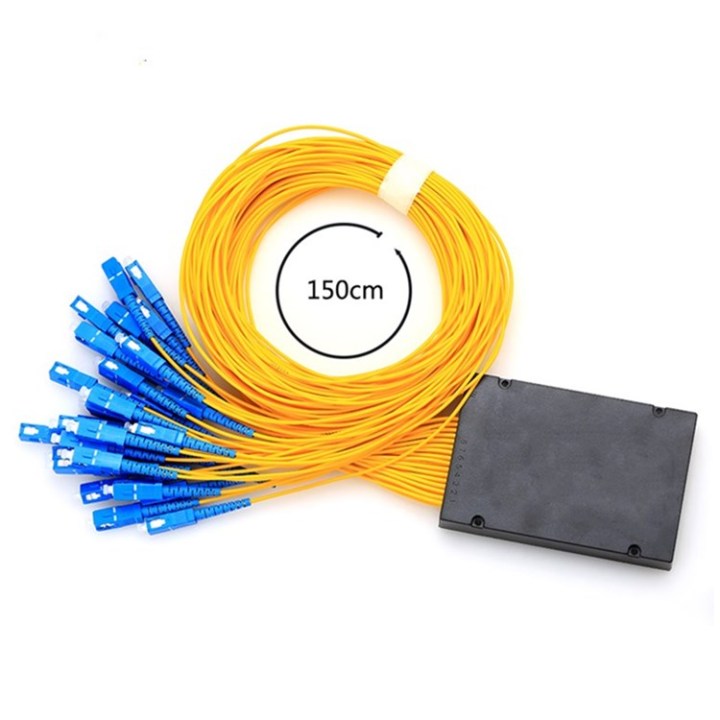

Factory Direct 1260-1650nm 1.5 Meter SC UPC Splitter 1x32 Cassette
Product details
Product Name PLC Splitter ABS Module 1X32 Fiber Type LC,FC,SC,ST Type ABS Box Type Ferrule Polish End-face PC,UPC,APC Application gepon,ftth ,fttx Insertion Loss 4-22dB Fiber Length 1m ,1.5m, 2m or customized Sleeve Diameter 2.0mm,3.0mm,0.9mm Package bare, module, rack mount,ABS case Wavelength 1310/1490/1550nm Product Keywords 1 TO 32 ABS BOX PLC SPLITTER
Products description:
1x32 Single Mode Tree Coupler Module (9/125um), 1310/1550nm Wavelength, 900µm Fiber
Fiber optic couplers are designed to split the input fiber optic light into two or more parts, and then to output the split signal to two or more optical fibers. These High Port Count Fiber Optic Couplers are available in 1x4, 1x8 and 1x16 configurations.
Our high quality, low cost couplers are available in single wavelength and dual window varieties in an assortment of split ratios. All device types are available with 250µm bare fiber, 900µm tight buffer, or 3mm jacket pigtails, and can be terminated with your choice of connectors or installed in rack moun
Application:
1.Fiber to The Point (FTTX)
2Fiber to The Home (FTTH)
3.Passive Optical Networks (PON)
4.Gigabit Passive Optical Networks (GPON)
5.Local Area Networks (LAN)
6.Cable Television (CATV)
7.Test Equipment
Features:
1.Wide wavelength range, excellent channel-to-channel uniformity.
2. Compact structure, easy to install, easy to operate.
3.Low insertion loss; Low back reflection; Low polarization related loss
4.Triple high-precision instrument testing: Bare fiber test + ATC test + assembly test, to make sure products with high performance.
Product Name | PLC Splitter ABS Module 1X32 |
Fiber Type | LC,FC,SC,ST |
Type | ABS Box Type |
Ferrule Polish End-face | PC,UPC,APC |
Application | gepon,ftth ,fttx |
Insertion Loss | 4-22dB |
Fiber Length | 1m ,1.5m, 2m or customized |
Sleeve Diameter | 2.0mm,3.0mm,0.9mm |
Package | bare, module, rack mount,ABS case |
Wavelength | 1310/1490/1550nm |
Product Keywords | 1 TO 32 ABS BOX PLC SPLITTER |
Products description:
1x32 Single Mode Tree Coupler Module (9/125um), 1310/1550nm Wavelength, 900µm Fiber
Fiber optic couplers are designed to split the input fiber optic light into two or more parts, and then to output the split signal to two or more optical fibers. These High Port Count Fiber Optic Couplers are available in 1x4, 1x8 and 1x16 configurations.
Our high quality, low cost couplers are available in single wavelength and dual window varieties in an assortment of split ratios. All device types are available with 250µm bare fiber, 900µm tight buffer, or 3mm jacket pigtails, and can be terminated with your choice of connectors or installed in rack moun
Application:
1.Fiber to The Point (FTTX)
2Fiber to The Home (FTTH)
3.Passive Optical Networks (PON)
4.Gigabit Passive Optical Networks (GPON)
5.Local Area Networks (LAN)
6.Cable Television (CATV)
7.Test Equipment
Features:
1.Wide wavelength range, excellent channel-to-channel uniformity.
2. Compact structure, easy to install, easy to operate.
3.Low insertion loss; Low back reflection; Low polarization related loss
4.Triple high-precision instrument testing: Bare fiber test + ATC test + assembly test, to make sure products with high performance.
