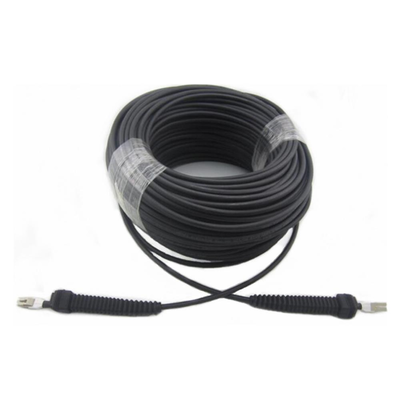

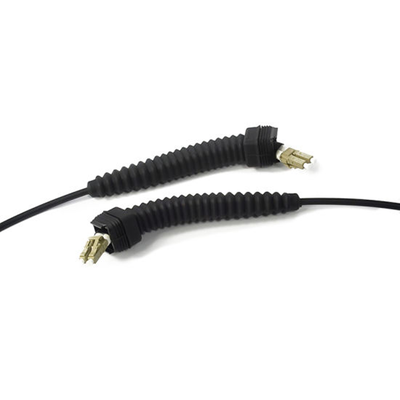

Flexible NSN Boot Fiber Patch Cord DLC DLC SM OM2 CPRI Cable NSN Boot End Patch Cord FTTA RRU BBU
NSN fiber optic connectors for the new generation wireless base stations pulled far (WCDM
A/TD-SCDMA/WIMAX/GSM) tailored products that can be meet the FTTA(fiber to the anten
na) program requirements for outdoor environment conditions and adverse weather conditio
ns.They are well suited for Industrial and Aerospace and Defense applications.
l Features:
Standard DLC connector
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof
Aluminum housing, compact design
Broad temperature range and wide range of indoor and outdoor Patch cables
Easy Operation, reliable and cost-effective Installation
The connector of side A is DLC, and side-B can be LC,FC,SC
Used for 4G 5G base station BBU, RRU, RRH, LTE
l Performance:
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Protection Level | IP67 |
| Tensile Data | Tensile between junction and fiber cable≥100N |
l Cable Structure:
l Type1: 2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=5.0mm
| Cable Count | OD (mm) | Weight | Tensile strength | General attenuation | Minimal Bending radius | Storage temperature | ||
| Short term | Long term | Singlemode | Multimode | |||||
| 2 | 5.0±0.2 | 25kg | 700N | 350N | 1310nm ≤0.4dB/km | 850nm ≤3.0dB/km | 20D | -20℃～+70℃ |
| 1550nm ≤0.3dB/km | 1300nm ≤1.0dB/km | |||||||
| Photo | Part Number | Description | Length |
|
|
Compatible Nokia FUFAN 473283A | DLC/OD-DLC/OD-SM-5.0-2m | 2 |
| Compatible Nokia FUFAJ 473279A | DLC/OD-DLC/OD-SM-5.0-5m | 5 | |
| Compatible Nokia FUFBG 473309A | DLC/OD-DLC/OD-SM-5.0-10m | 10 | |
| Compatible Nokia FUFBE 473307A | DLC/OD-DLC/OD-SM-5.0-30m | 30 | |
| Compatible Nokia FUFBF 473308A | DLC/OD-DLC/OD-SM-5.0-50m | 50 | |
| Compatible Nokia FUTEY 473537A | DLC/OD-DLC/OD-SM-5.0-80m | 80 | |
| Compatible Nokia FUFBH 473310A | DLC/OD-DLC/OD-SM-5.0-100m | 100 | |
| Compatible Nokia FUTEX 473536A | DLC/OD-DLC/OD-SM-5.0-150m | 150 | |
| Compatible Nokia FUFBI 473311A | DLC/OD-DLC/OD-SM-5.0-200m | 200 |
